Citroen Dispatch 2007> (711123)

CITROEN DISPATCH 2007>

Step 1: Unclip dash top trim with tray or screen. Lift up from rear and slide back to windscreen to release pegs out from fascia panel.

Step 2: Unclip lower console trim beneath heater controls.

Step 3: Remove the 4 Torx screws in the recess.

Step 4: Remove the radio with the DIN keys and disconnect. Remove storage tray.

Step 5: Lever fascia forwards.

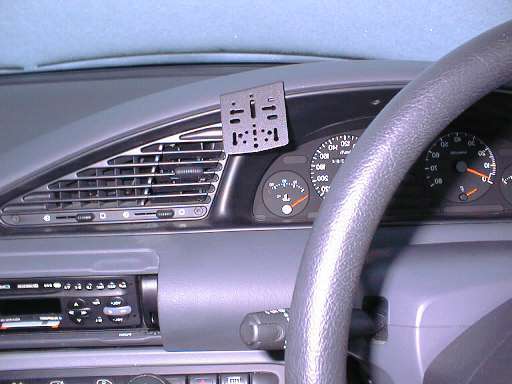

Step 6: Locate bracket around the console edge at storage tray level so that it rests on the plastic inner ledge.

Step 7: Use the tape and self tapper if required.

Step 8: Refit all parts.
