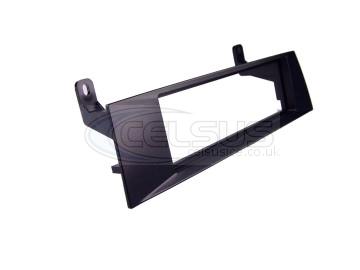

BMW Fascia Pannel – BLACK

1 Series – E87

3 Series – E90 / E91 / E92

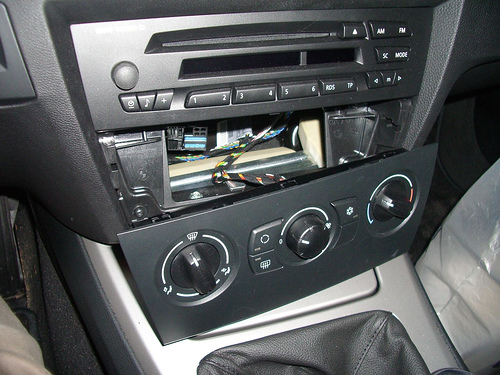

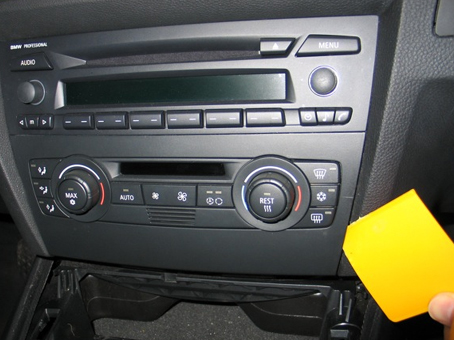

To remove the factory radio, use a large flat blade trim tool and gently release the aircon unit below directly under the radio

Pull it forward and remove the connecters on the rear of the air con module

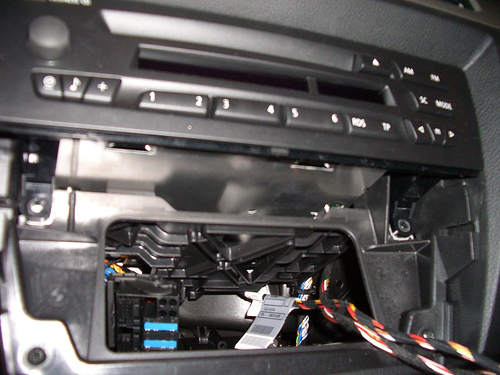

Undo the 2 torx screws securing the radio in place, once removed the radio will be free to fully remove

Unclip the quadlock and fakra connections at the radio
